Diesel Locomotive

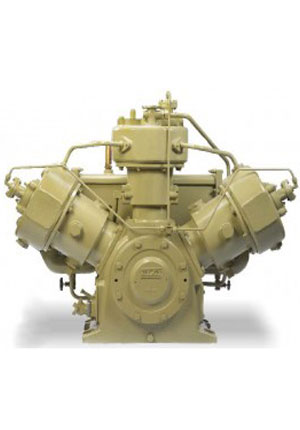

RR66101 W

Key Features :

  • ☞ First ‘Water Cooled’ design compressor for Indian Railways
  • ☞ Meets air requirement of GM locomotives WDP4 and WDG4 built by Diesel Locomotives Works, Varanasi
  • ☞ Improved crankshaft design for better impact resistance and strength
  • ☞ Convenient float type ‘oil level indicator’ and dip stick arrangement
  • ☞ High sump capacity ensures improved ergonomics & maintenance schedule
  • ☞ Effective heat transfer through ‘Shell & Tube’ cooling arrangement
    • Diesel Locomotive

    Features :

  • ☞W-type configuration, three cylinder, two-stage, forced lubrication, water-cooled and direct coupled.
    • Free Air Delivery 5380 lpm (190 cfm)
    Working Pressure 10 Kg/cm2
    Overall Dimension (L x B x H) 1368 x 662 x 1060 mm
    Weight 710 Kg ( Approx.)
    Download Brochure...

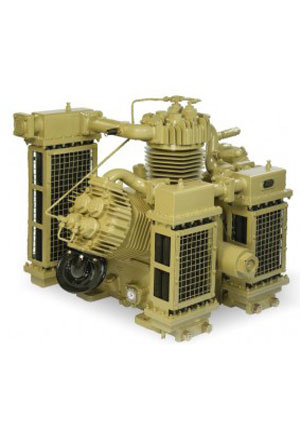

    RR 80101

    Key Features :

  • ☞ Upgraded version of LG3 CDB for higher reliability and low life cycle cost
  • ☞ Designed to meet the latest maintenance schedule requirement of Indian Railways of M24
  • ☞ Introduced Hexagonal deep dense finned cylinders for better heat dissipation
  • ☞ Compact breather
  • ☞ Positive locking arrangement for counter weight in crankshaft
    • Diesel Locomotive

    Features :

  • ☞ Upgraded version of LG3 CDB for higher reliability and low life cycle cost
  • ☞ Designed to meet the latest maintenance schedule requirement of Indian Railways of M24
  • ☞ Introduced Hexagonal deep dense finned cylinders for better heat dissipation
  • ☞ Compact breather
  • ☞ Positive locking arrangement for counter weight in crankshaft
    • Download Brochure...

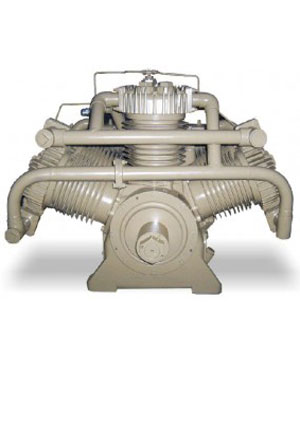

    RR 100101 EC (Expressor)

    Key Features :

  • ☞ Upgraded version of 6CD 3UC for higher reliability and low life cycle cost
  • ☞ Latest design for enhance performance parameter
  • ☞ Less maintenance cost
  • ☞ Aerodynamically designed Fan guard for higher air flow
    • Diesel Locomotive

    Features :

  • ☞ W-type configuration, three exhauster cylinders – single stage, three compressor cylinders – two stage, forced feed oil lubricated, air-cooled and direct coupled.
    • Download Brochure...

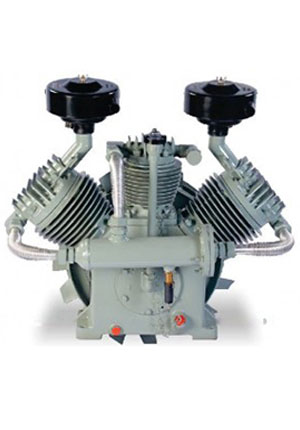

    TRC 1000 B

    Key Features :

  • ☞ This compressor is specially developed for Shunting Locomotives WDS6 & DEMUs
  • ☞ Special design ‘Oil Bath’ air suction filters, which provides dust free suction air
  • ☞ Suited for either direction of rotation i.e. clockwise or anticlockwise
  • ☞ Flexible V- belt drive system on locomotives
    • Diesel Locomotive

    Features :

  • ☞ W-type configuration, three cylinder, two-stage, splash lubrication, air-cooled, V-belt drive.
    • Download Brochure...

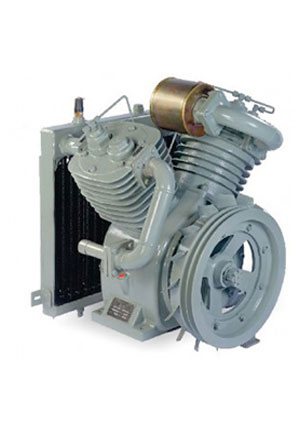

    TRC 2507

    Key Features :

  • ☞ This compressor is used in Diesel Electric Multiple Unit (DEMU)
  • ☞ Suited for either direction of rotation i.e. clockwise or anticlockwise
  • ☞ Dynamically balanced, less vibration
  • ☞ Highly volumetric efficiency
    • Diesel Locomotive

    Features :

  • ☞ V-type configuration, two cylinder two-stage, splash lubrication, air-cooled and V-belt drive
    • Download Brochure...
